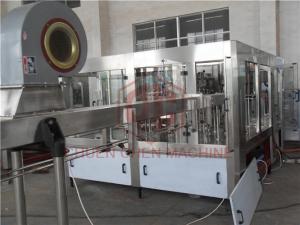

Isobaric Plastic Bottle Carbonated Drink Filling And Capping Machine 10000BPH
Flow chart of Production Line
1, Water treatment system: Booster pump - Pre treatment - Reverse osmosis - Sterilizing machine - Pure water storage tank - Washing part / Filling Part / Processing part
2, Carboanted energy drink production line: Sugar metling system - Mixing system - Homogenizer system - CO2 mixing system - Water chiller
3, Beverage Filling system: Monoblock washing-filling-capping machine - Air conveyor & Belt conveyor - Light checker
4, Bottled beverage packing system: Labeling machine - Packing machine - Date printer
5, Warming tunnel
NOTE: the final list will be customize basing on:
1, the real bottles and caps
2, the production capacity per hour
3, labeling manner
4, packing manner
Description
Carbonated drink filling machine is to fill beverage with CO2 into plastic bottles in low temperature. The bottle should be bear the pressure a little bit; The whole system should have the CIP cleaning connection to make sure the hygiene.
Technical specification
| Model | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-12 | DCGF60-60-15 |
| Capacity 500ml | 10000 | 15000 | 20000-24000 | 25000 |
| Bottle type | PET Circular or square |
| Bottle diameter | 50-115 mm |
| Bottle height | 160-320 mm |
| Air consumption | 0.3-0.7 Mpa |
| Air pressure | 5-8bar |
| Washing medium | Aseptic water |
| Pressure of washing | >0.06Mpa <=0.2Mpa |
| Power (kw) | 6.2 | 7.8 | 10 | 13 |
| Weight (kg) | 7500 | 8500 | 9000 | 9500 |
"CLICK" Video Link in Youtube
DOWNLOAD video link in PDF: Video link in youtube.pdf
Pls send us "INQUIRY"
Characters
1, Machine Material
- Juice touch parts are stainless steel 304 or 316L
- Frame material is stainless steel 304, the thickness is 1.5mm
- The machine table is carbon steel, we add more poles under the table
- Bushes are changed to imported brand which is free lubricate
- All parts are manufactured in more precise
2, Machine structure
- There a return system along with the juice filling machine; once the juice temperature is lower than 85 degrees Celsius, it will be returned to UHT for sterilizing again
- Apply the circular tank to avoid the residual
- New type: round smooth corner, Arm controller installed on the machine
- Monoblock high speed 3 in 1 washing - filling - capping unit
- The pump is adopted the Nanfang pump which is one of the best brand in China
3, Each unit features
- Washing Part: The washing pipes can be changed to stainless steel 304
- Filling Part: there are several types of filling valves for carbonated drink; it will be basing on the product performance to recommend the filling valve;
- Capping Part: No bottle no capping
High quality: international brand electricity and good material
Our machines are using world famous brand component.
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France and Germany.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from Germany.
BOURNS potentiometer from America.
Professional After Sale Service
Our engineer will be on site to guide installation and debugging , we also provide free staff training. Further more,Our After Sale service department offering 24 hours 7days service ,we will quickly respond you once you have any question when using our machines.
FAQ
Q: This is the first time I cooperate with your factory. How can I trust you about the machine quality?
A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory;
Also you can visit us to see the machine;
Q: If the quality doesn't meet my requirment, how can you solve this problem?
A: Before ordering the machine, we will negotiate the machine inspection standard. Then start production; If you are not satisfied with the quality, show us, we will re-do it before shipping;
Q: Can I run the machines in your factory if I buy the complete line in your factory?
A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;
Q: How can I get the machine?
A: Our company have the export license, so we can help to ship the machine to discharge port that you are available.
Q: How can I install the machine and commissioning? Do you have the technician to my factory?
A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.

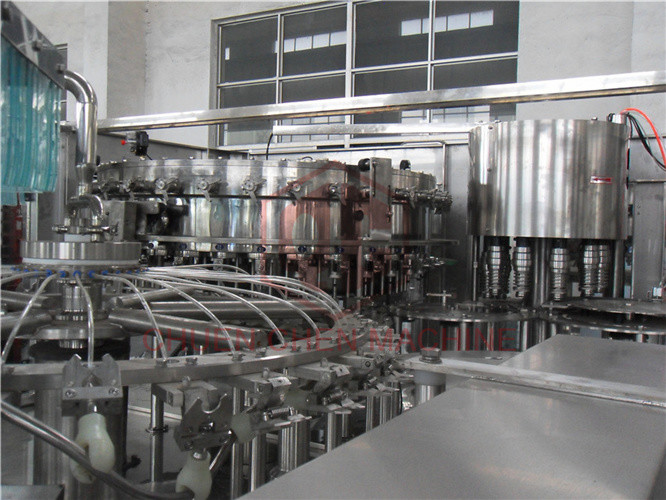

Detailed photo for ref
